SAP Gateway API - Configuration in RaPTr Server

PARAMETERS

Parameter	Definition
Barcode Read Event URL	URL to which BarcodeReadEvent REST requests will be made.
Barcode Image Event URL	URL to which BarcodeImageEvent REST requests will be made.
Additional Image Event URL	URL to which AdditionalImageEvent REST requests will be made.
SAP X-CSRF-TOKEN URL	URL to which X-CSRF Token Fetch requests will be made
SAP Gateway Local Port	The TCP port on which the customer’s Supervisor REST Client connects to RaPTr Server. Default is 53238.
Request Timeout	Messages are to be received from SAP timely so that messages can be displayed onscreen for material handlers. Adjust the timeout to cancel API requests to SAP (seconds)
Forward Images	Disabled – Does not forward images Enabled – Forwards images (BarcodeImageEvent, AdditionalImageEvent) File Path – Forwards saved image file path only (BarcodeImageEvent, AdditionalImageEvent)
Username	Username for basic authentication of customer’s REST client and server.
Password	Password used in basic authentication of customer’s REST client and server.

RAPTR SERVER Configuration

The following section describes how to set up your RaPTr Server to use the SAP Gateway API Operational Interface. It also provides details on the implementation of the API in SAP Gateway.

1.        Launch RaPTr Server Utility

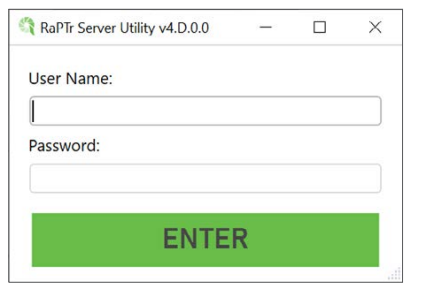

2.        Enter in Username and Password

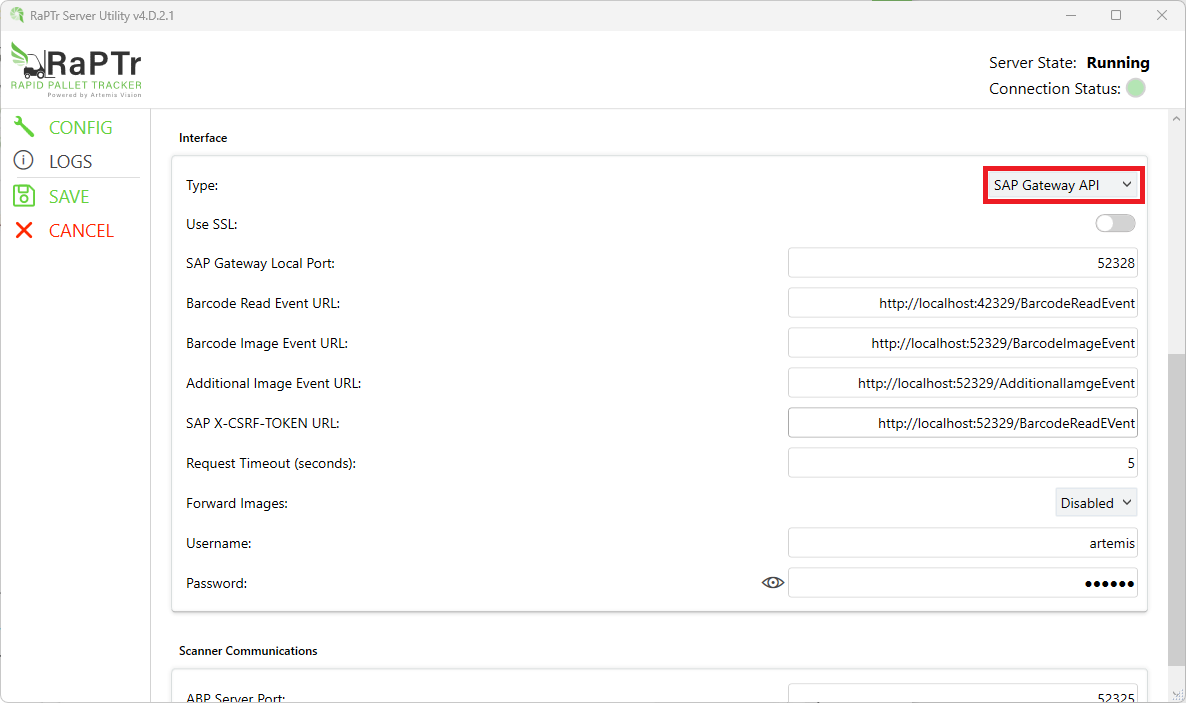

3.        Select SAP Gateway API from the Type drop down menu located in the Interface section. (see following page)

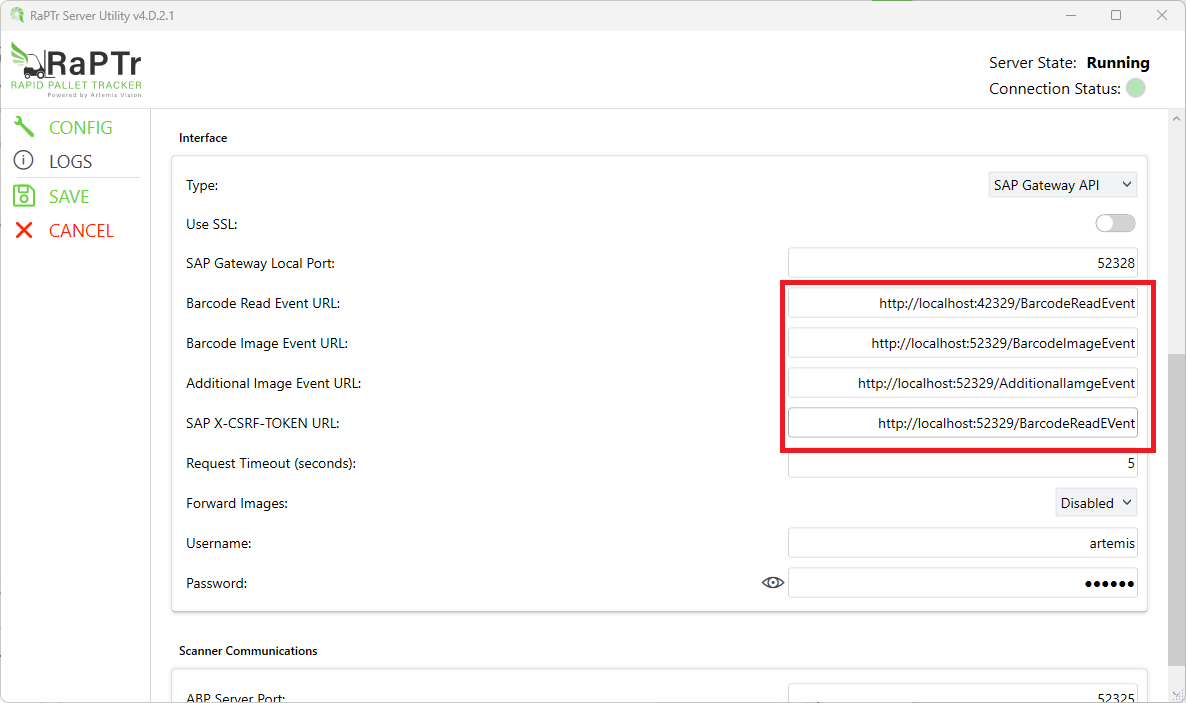

4.         Update all URLs.

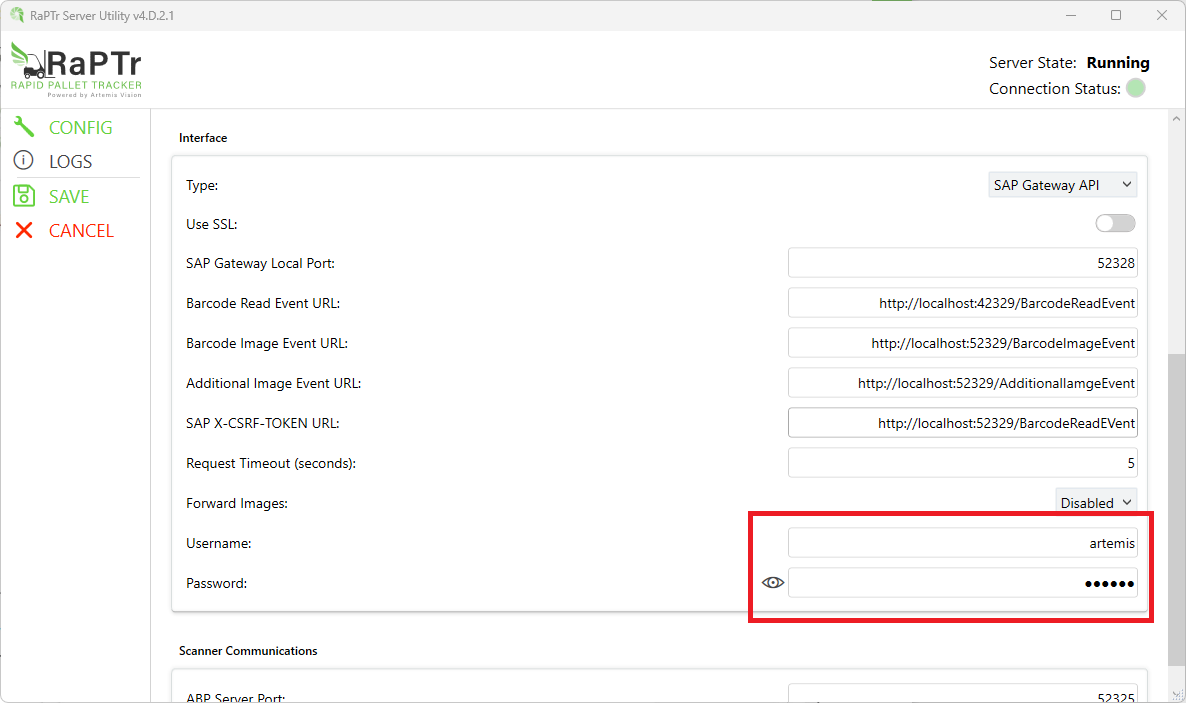

5.        Enter in a new Username and Password.

6.        Optionally, update the SAP Gateway Local Port, select an option for using SSL, select to Forward Images to SAP, or select to change the default timeout for canceling the API request.

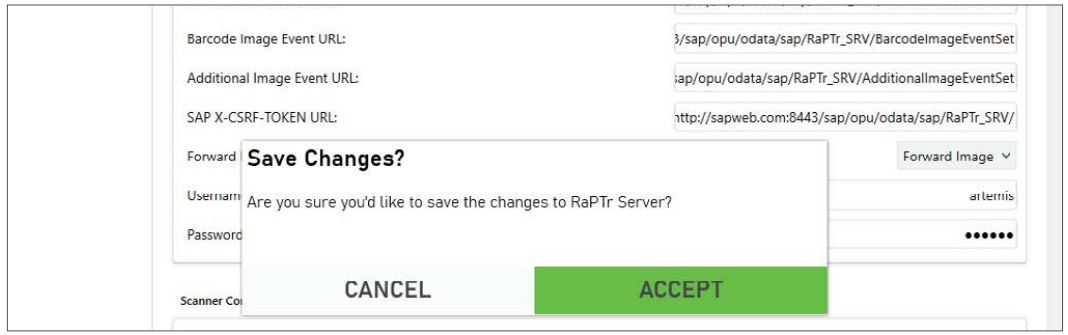

7.        Save changes and force RaPTr Server to restart.
