Custom Message Event

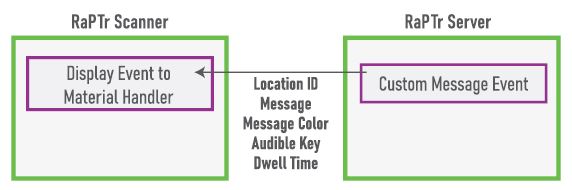

DIRECTION

Unidirectional, to RaPTr Scanner

INPUTS

Parameter	Definition	Example
Location ID	Unique identifier for a RaPTr Scanner in a warehouse.	1
Message	Custom message to the material handler	MISSING PALLET
Message Color	Color that will highlight the message to the material handler. Most commonly red or green.	#FF0000 (Red)
Audible Key	Key that defines which audible will be played. Corresponds with the Sound ID field on the RaPTr Scanner.	Good
Dwell Time	How long the message should persist on the screen, in milliseconds.	10000

OUTPUTS

There are no outputs for a Custom Message Event.

SUPPORTED OPERATIONAL INTERFACES

Plug-In, REST API, SAP Gateway API

DESCRIPTION

RaPTr Server can send custom messages to a RaPTr Scanner to be displayed to a material handler. These messages will be populated in the same area as the Barcode Read Event messages. Included in the event is a configurable dwell time that controls how long the message persists on the screen.
