Additional Barcode Image Event

DIRECTION

Unidirectional, to RaPTr Server

INPUTS

Parameter	Definition	Example
Barcode Message ID	Unique identifier for the message containing the barcode read event	4758364137
Location ID	Unique identifier for a RaPTr Scanner in a warehouse.	1
Camera ID	Unique identifier for a camera within a RaPTr Scanner.	1
Image Data	All data that constitutes the image.	N/A
Barcode Coordinates	Coordinates of the decoded barcode in the image, expressed as a percentage.

OUTPUTS

Parameter	Definition	Example
Barcode Message ID	Unique identifier for the message containing the barcode read event	4758364137
Location ID	Unique identifier for a RaPTr Scanner in a warehouse.	1
Camera ID	Unique identifier for a camera within a RaPTr Scanner.	1

SUPPORTED OPERATIONAL INTERFACES

Plug-In, REST API, SAP Gateway API

Note: Although the event is not supported for all interfaces, the act of saving the images in long term storage is natively supported by RaPTr Server.

DESCRIPTION

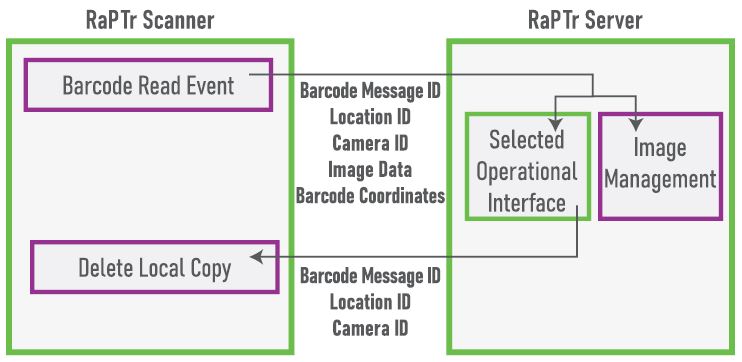

A RaPTr Scanner can be configured to have photo documentation cameras (passive cameras) whose purpose are to capture images following a Barcode Read Event. If configured to do so, RaPTr Scanner will forward that image to RaPTr Server so that it can be saved to long term storage. Optionally, the image can be used for custom functions via the supported interfaces. Included in the Barcode Image Event is a message ID that matches the message ID in the Barcode Read Event message that triggered the process. After all actions have been taken, RaPTr Server communicates to RaPTr Scanner that a successful transaction has occurred and RaPTr Scanner can delete its local copy. It does this by returning much of the same contents as the Barcode Image Event message.

Note: Uploading the image from RaPTr Scanner to RaPTr Server is not instantaneous and may lag the Barcode Read Event by several seconds, or in some cases, minutes.
