Plug-in Interface

DESCRIPTION

RaPTr Server can load in custom plug-ins that follow an architecture developed by Artemis Vision. The plug-ins are written in C# and can access all events and functions provide by RaPTr Server. In most cases, the plug-in is used when one of the other operational interfaces does not meet the business cases. For more information and a sample project containing the structure of the plug-in, contact Artemis Vision.

RAPTR SERVER SETUP

The following section describes how to setup your RaPTr Server to use one of the Database Operational Interfaces. It also provides details on the implementation of the stored procedure.

1. Create Plug-in

2. Copy all Plug-in files to c:/Artemis/Plug-ins. Alternatively, use the Upload New Plug-in button (see screenshot on following page). Note, when using the Upload New Plug-in button, a .zip file of the plug-in contents must be selected.

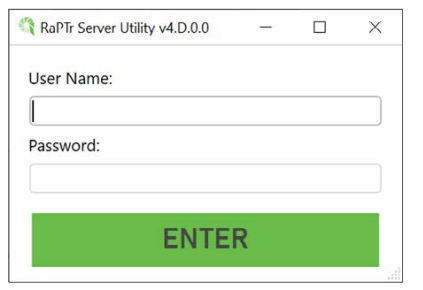

3. Launch RaPTr Server Utility

4. Enter in Username and Password

5. Select Plug-in from the Type drop down menu located in the Interface section.

6. Save changes and force RaPTr Server to restart.
