Configuration Mode - Navigating, Saving, Reset

Entering Configuration Mode

1. From RUN MODE, press F5 or click on the RaPTr logo located in the top right corner.

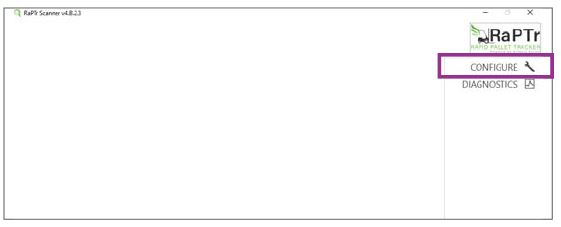

2. Click the CONFIGURE button.

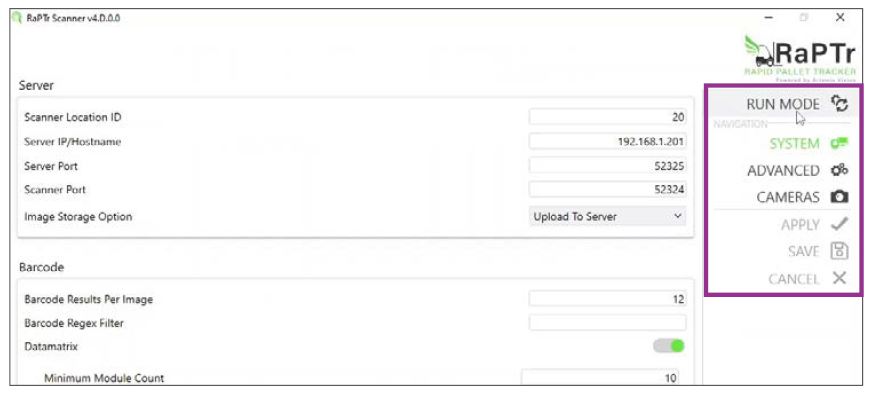

NAVIGATION

The right-hand side of the screen is reserved for the navigation tool bar. If desired, the navigation can be shown/hidden by clicking the RaPTr logo or by pressing F5. Key areas of the tool bar are separated by a thin bar. The topmost section is for transitioning the scanner back to RUN MODE, the middle section is for the navigation menu, and the final section is for saving, applying and canceling changes made to settings. When navigating between the individual menus, the navigation menu will highlight the menu that is currently visible.

SAVING AND APPLYING CHANGES

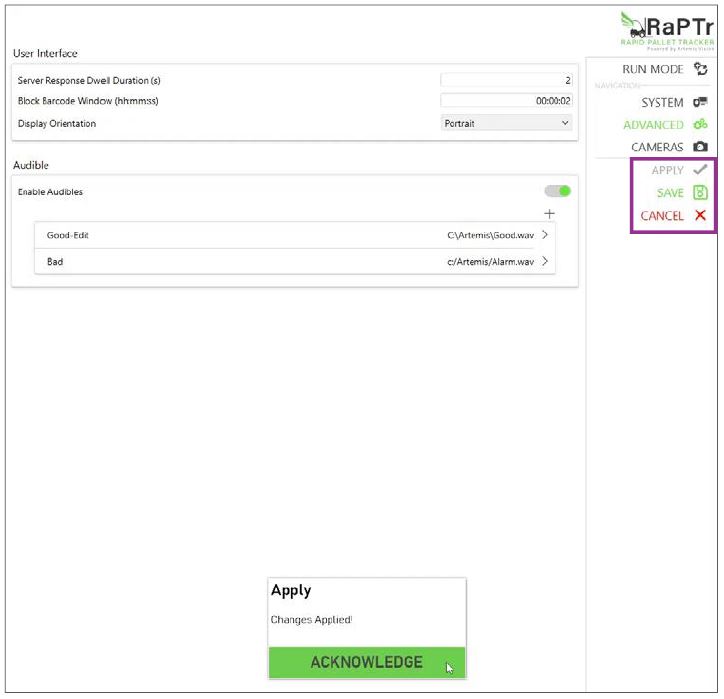

If a change has been made to the System or Advanced settings, the APPLY button will be highlighted in green and the CANCEL button will be highlighted in red. Clicking the APPLY button will cause the changes to take effect. Once those changes are applied but not saved, the SAVE button will be highlighted green, and the CANCEL button will be red. If there are no changes to be applied or saved, no highlighting will take place.

If a change has been made to the camera or lens, it is applied immediately. For that reason, the APPLY button will not highlight green. Instead, the SAVE button will highlight green, and the CANCEL button will be red. Clicking the CANCEL button removes any changes that have not been saved.

RESETTING TO FACTORY DEFAULTS

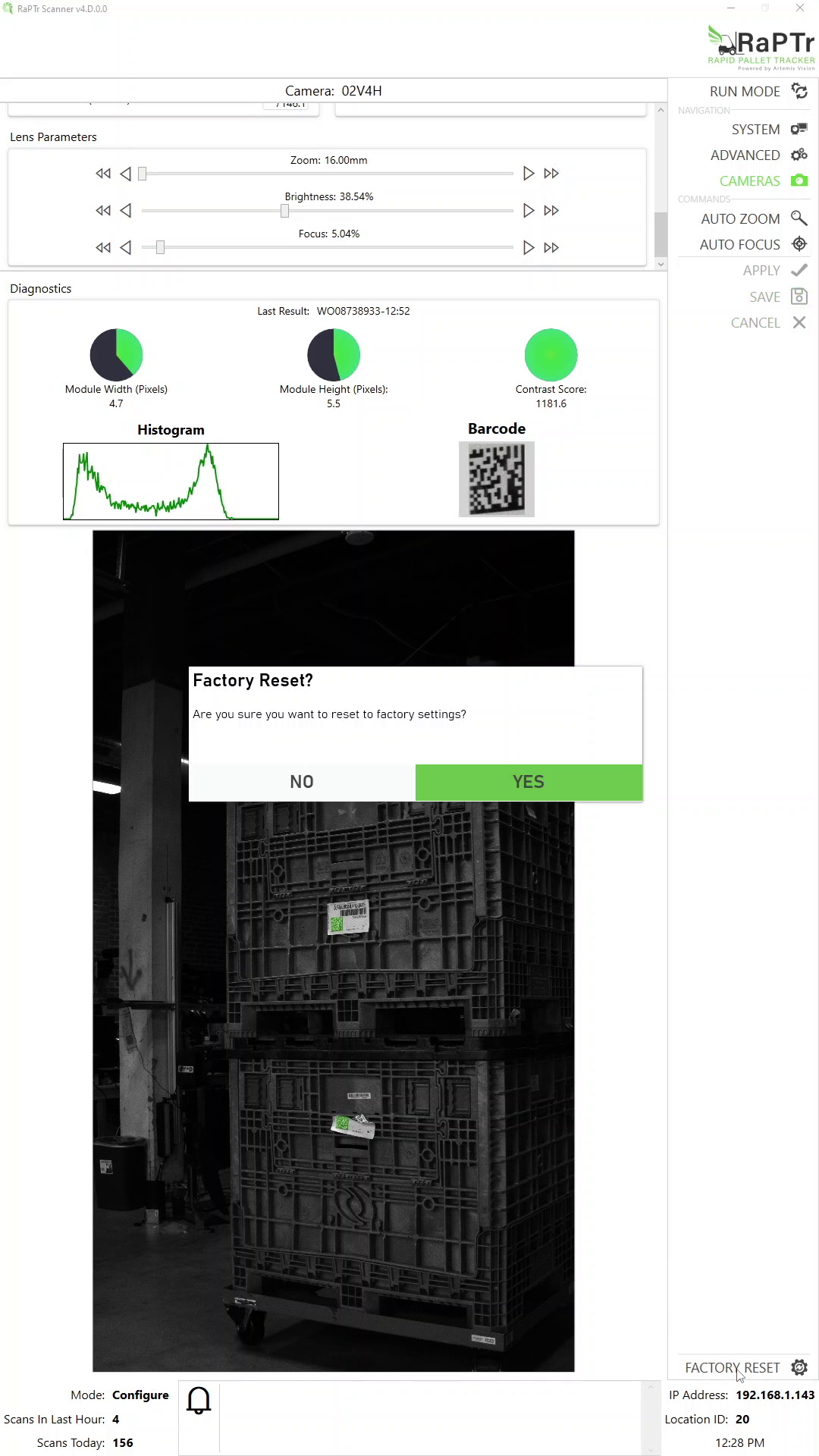

To reset to factory defaults, click the FACTORY RESET button located in the far lower right-hand corner of the screen. From there, all acknowledge the prompt to complete the factory reset.
