Selecting Symbologies

1. From RUN MODE, press F5 or click on the RaPTr logo located in the top right corner.

2. Click the CONFIGURE button.

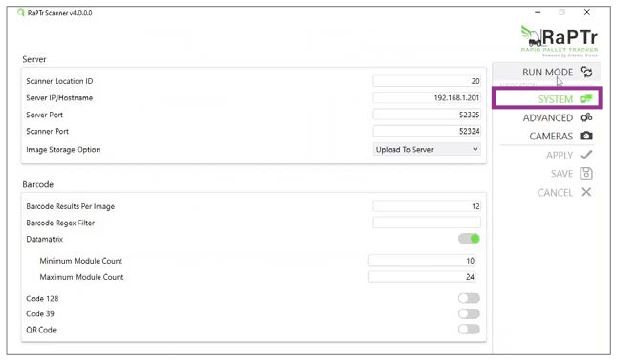

3. If not currently shown, navigate to the System menu by clicking the SYSTEM button.

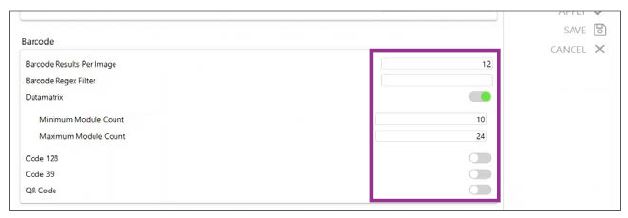

4. Select the symbologies needed for your application by clicking the selectors to the right of each symbology.

5. Click the SAVE button to both apply the changes and save them through restart, or APPLY to simply apply changes.

See Barcode Basics & Symbology Guide for more information on types of barcodes.
