Advanced Menu

The ADVANCED menu contains parameters that are considered ancillary functions. Many of these parameters are related to the feedback mechanisms available to the material handler.

Parameters

User Interface

Parameter	Definition	Example
Server Response Dwell Duration(s)	Defines how long the Barcode Read Event Responses will dwell in the Server Response Section of the UI. Value is in seconds.	10
Block Barcode Window (hh:mm:ss)	Defines the length in time during which a barcode must not be present in the scanner’s field of view before it can be rescanned. By default, this is set to 30 seconds to prevent the same barcode from being scanned twice during the normal loading process.	00:00:30
Display Orientation	Defines the orientation of the User Interface. The UI was designed to be in portrait or portrait flipped orientation but still supports landscape options.	Portrait

Audible

Parameter	Definition	Example
Enable Audibles	Enables the playing of audibles to alert the material handler of a correct or incorrect pallet. The audibles are MP3 files that are played by the speaker output on RaPTr Scanner.	TRUE
Sound ID	String that will be passed to the scanner during a custom event message or a barcode read event. This will signify which audible shall be played.	Good
File Name	File path the audible file that will be played. Please note that this must be a WAV file.	c:\Artemis\Good.wav

Adding Audibles

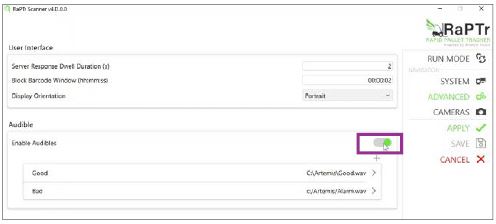

To add an audible, first ensure that the audibles are enabled by clicking the ENABLE AUDIBLES selector.

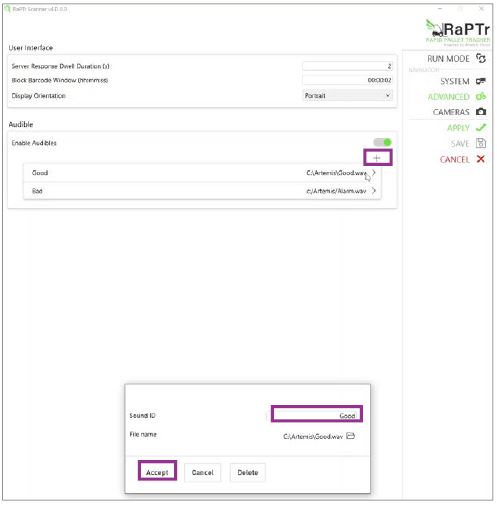

Once the audibles menu is available, click the plus sign near the top right corner of the audibles menu, this will open the audibles dialog box. From here you must enter a unique Sound ID and select an existing file from the file system. Once these parameters have been satisfied, click the ACCEPT button to add the audible to the system.



Deleting Audibles

To delete an audible, first ensure that the audibles are enabled by clicking the ENABLE AUDIBLES selector.

Once the audibles menu is available, click on the audible that you wish to delete, this will open the audibles dialog box. From here, click the DELETE button and acknowledge the prompt.

Editing Audibles

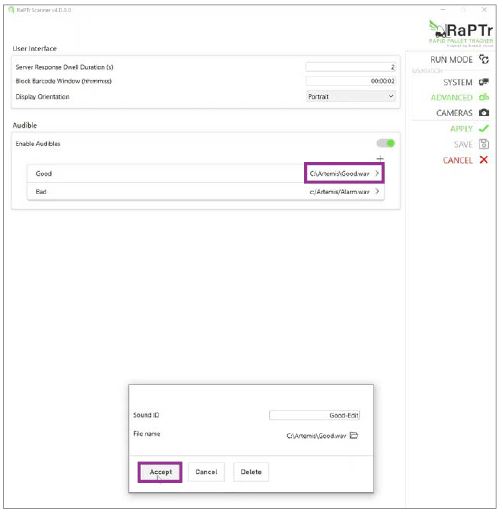

To edit an audible, first ensure that the audibles are enabled by clicking the ENABLE AUDIBLES selector.

Once the audibles menu is available, click on the audible that you wish to edit; this will open the audibles dialog box. From here, make the edits to either the Sound ID, File Name or both. After making the desired changes, accept the changes by clicking the ACCEPT button.
