Connecting to RaPTr Server

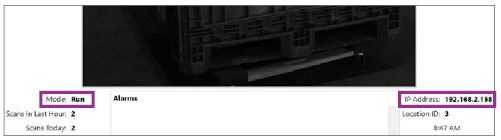

1. Ensure your scanner has an IP address and is connected to your network. The current IP address can be found in the bottom right-hand corner of the RUN MODE display. If neither of these things are true, contact your local IT professional.



Note: The Alarm banner will show the error “Lost connection with server” until all steps in this section have been completed.

2. From RUN MODE, press F5 or click on the RaPTr logo located in the top right corner.

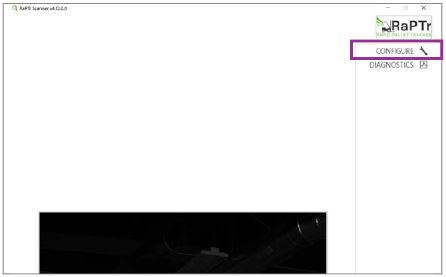

3. Click the CONFIGURE button.

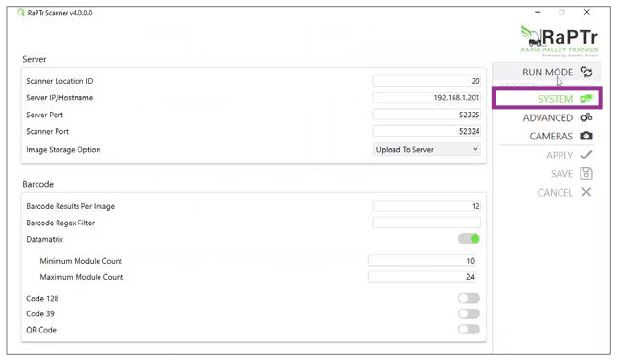

4. If not currently shown, navigate to the System menu by clicking the SYSTEM button.



5. Enter a new Scanner Location ID for your scanner. This should be unique for this facility.



6. Enter the IP Address or Host Name of RaPTr Server. Optionally, update the Server and Scanner Port Numbers.



7. Select how images should be handled by RaPTr Scanner (Image Storage Option dropdown menu).



8. Click the SAVE button to both apply the changes and save them through restart, or APPLY to simply apply changes.



9. If connection can be established, the error “Lost connection with server” should disappear from the alarm banner within a few seconds. If the error persists, see the Troubleshooting articles.
