After making changes to parameters in RaPTr Scanner, changes can be "Applied" in runtime and then "Saved" to a configuration file so that the changes persist on software restarts.
Steps:

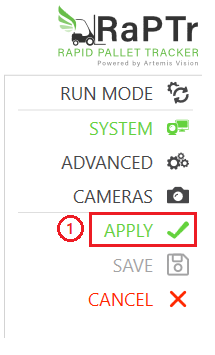

1. After making a parameter change in RaPTr Scanner, the "Apply" button will be highlighted. Click "Apply" in order to apply parameter changes to the runtime configuration. The parameters will not persist on restart at this point, but they will be implemented to the runtime so that changes can be tested.

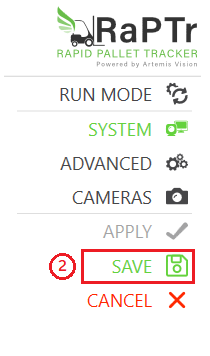

2. Then, to save parameters so they persist on software restarts, they must be written to a configuration file. The "Save" button will be highlighted indicating that parameters are eligible to be written to file.
NOTE: In order to enter RaPTr Scanner's configuration screen, click on the RaPTr logo in the upper right-hand corner or press F5. And then click "Configure".
NOTE: Camera properties are automatically applied after a change is made. However, the properties would still need to be "Saved" so they persist on software restart.

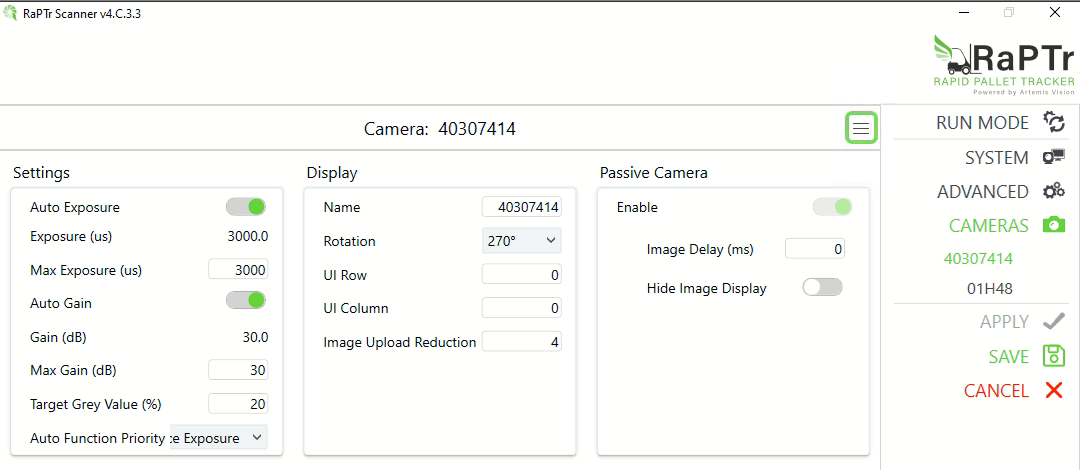

Camera Properties Example:
